Specifications

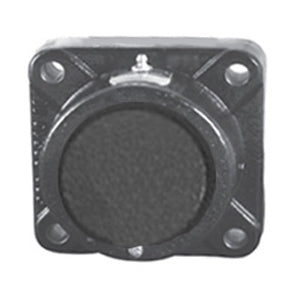

| title | ZFS9303SB |
| price | $ 6,267.26 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 79 |
| Bore | 3.188 Inch | 80.975 Millimeter |
| EAN | 698210020682 |
| Other Features | Double Row | Closed End |
| Relubricatable | Yes |
| Global Part Number GPN | 554291 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 5.438 Inch | 138.125 Millimeter |
| Cartridge Pilot Diameter | 9.5 Inch | 241.3 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 8.313 Inch | 211.15 Millimeter |
| Nominal Bolt Circle Diameter Round | 11.7 Inch | 297 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1 Inch |
| Insert Part Number | 9303U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Clearance Seal |
| Pilot Configuration | With Pilot |
