Specifications

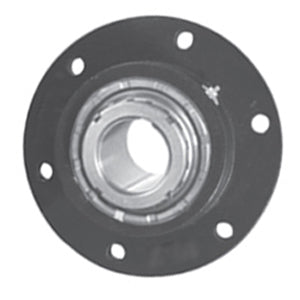

| title | ZFS9315YS |
| price | $ 8,855.02 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 124 |
| Bore | 3.938 Inch | 100.025 Millimeter |
| EAN | 698210020712 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 554286 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 5.594 Inch | 142.088 Millimeter |
| Cartridge Pilot Diameter | 11.625 Inch | 295.275 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 6.438 Inch | 163.525 Millimeter |
| Nominal Bolt Circle Diameter Round | 12.9 Inch | 327.7 Millimeter |
| Housing Style | 6 Bolt Round Flange Block |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 1 Inch |
| Insert Part Number | 9315YU |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Clearance Seal |
| Pilot Configuration | With Pilot |
