Specifications

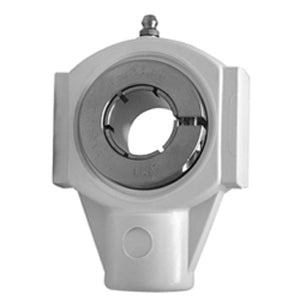

| title | UEHPL207-23W |
| price | $ 158.42 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | AMI BEARINGS |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.78 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| EAN | 808250210039 |
| Other Features | Single Row | Spherical | Wide Inner Race | White Housing | Has Slinger |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.728 Inch | 43.891 Millimeter |
| Base to Center Height | 3 Inch | 76.2 Millimeter |
| Housing Outside Diameter | 3.5 Inch | 88.9 Millimeter |
| Housing Overall Length | 4.922 Inch | 125.019 Millimeter |
| Mounting Thread | 5/8 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | UE207-23 |
| Rating | Normal Duty |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
