Specifications

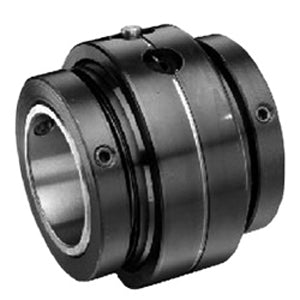

| title | ERCI 315C |
| price | $ 2,569.72 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.20.00.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 30 |
| Bore | 3.938 Inch | 100.025 Millimeter |
| Other Features | Double Row | Double Collars | With Set Screw | Has Flinger | Expansion | Self Aligning |
| Outside Diameter | 7.189 Inch | 182.601 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 24885 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 6.25 Inch | 158.75 Millimeter |
| Outer Race Width | 3.13 Inch | 79.502 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contact |
