Specifications

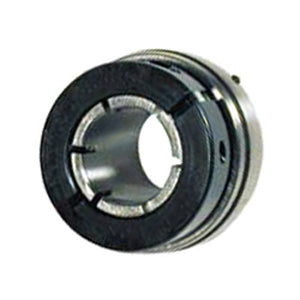

| title | INS-DL-215 |
| price | $ 386.88 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.816 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 5.9 |
| Bore | 2.938 Inch | 74.625 Millimeter |
| Other Features | Single Row | Normal Duty | With Set Screw | Corrosion Resistant |
| Outside Diameter | 5.118 Inch | 129.997 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 560609 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.328 Inch | 59.131 Millimeter |
| Outer Race Width | 1.42 Inch | 36.068 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contact |
