Specifications
| title | INS-GT-50M-CR |
| price | $ 373.74 / each |

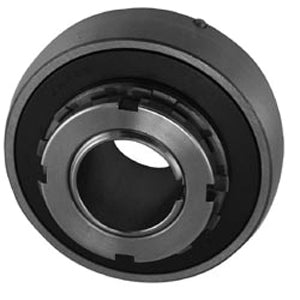

| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 0.82 |
| Inch - Metric | Metric |
| Brand | DODGE |
| Weight / LBS | 3.086 |
| Bore | 1.969 Inch | 50 Millimeter |
| Other Features | Single Row | Normal Duty | Corrosion Resistant | Metric |
| Outside Diameter | 3.543 Inch | 90 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 560666 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 1.858 Inch | 47.2 Millimeter |
| Outer Race Width | 0.866 Inch | 22 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contact |
