FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

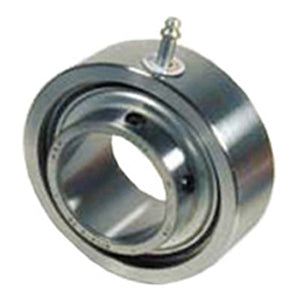

| title | INS-SCH-111-E |
| price | $ 168.72 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.27 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 2.45 |
| Bore | 1.688 Inch | 42.875 Millimeter |
| Other Features | Single Row | Normal Duty | Expansion |
| Outside Diameter | 3.813 Inch | 96.85 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 560780 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.719 Inch | 43.663 Millimeter |
| Outer Race Width | 1.25 Inch | 31.75 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contact |
