Specifications

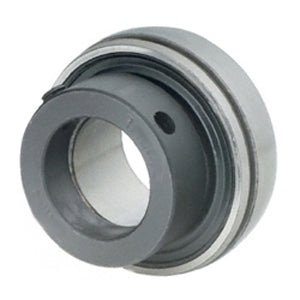

| title | INS-SXV-112 |
| price | $ 65.06 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 0.82 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 1.8 |
| Bore | 1.75 Inch | 44.45 Millimeter |
| Other Features | Single Row | Intermediate Duty | With Set Screw |
| Outside Diameter | 3.347 Inch | 85.014 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 560902 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.719 Inch | 43.663 Millimeter |
| Outer Race Width | 0.866 Inch | 21.996 Millimeter |
| Inner Race Profile | Narrow Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contact |
