Specifications

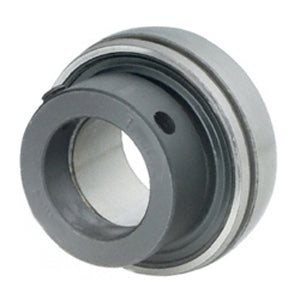

| title | INS-SXV-55M |
| price | $ 97.00 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.361 |
| Inch - Metric | Metric |
| Brand | DODGE |
| Weight / LBS | 2.646 |
| Bore | 2.165 Inch | 55 Millimeter |
| Other Features | Single Row | Intermediate Duty | With Set Screw | Metric |
| Outside Diameter | 3.937 Inch | 100 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 560915 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.906 Inch | 48.4 Millimeter |
| Outer Race Width | 0.945 Inch | 24 Millimeter |
| Inner Race Profile | Narrow Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contact |
