Specifications

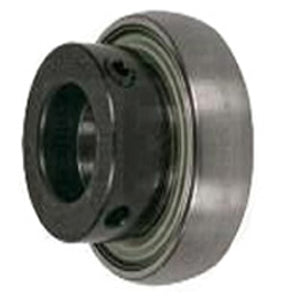

| title | NPS104RRC |
| price | $ 39.39 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 1.324 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| Other Features | Single Row | With Set Screw |
| Outside Diameter | 2.835 Inch | 72.009 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 564501 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.531 Inch | 38.887 Millimeter |
| Outer Race Width | 0.748 Inch | 18.999 Millimeter |
| Inner Race Profile | Narrow Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip |
