FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

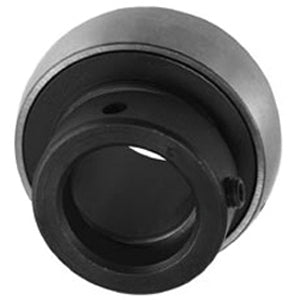

title | UG209RT |
price | $ 84.26 / each |
Category | Insert Bearings Spherical OD |
UNSPSC | 31171536 |
Harmonized Tariff Code | 8482.10.50.00 |
Manufacturer Name | AMI BEARINGS |
Inch - Metric | Metric |
Brand | AMI BEARINGS |
Weight / LBS | 1.76 |
Bore | 1.772 Inch | 45 Millimeter |
Other Features | Single Row | Normal Duty | Steel Cage | Has Slinger | Metric |
Outside Diameter | 3.346 Inch | 85 Millimeter |
Global Part Number GPN | 560292 |
Mounting Method | Eccentric Collar |
Length Thru Bore | 2.217 Inch | 56.3 Millimeter |
Outer Race Width | 0.866 Inch | 22 Millimeter |
Inner Race Profile | Wide Inner Ring |
Snap Ring | No |
Outer Race Profile | Spherical |
Seal Type | Triple Lip Contact |
