FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

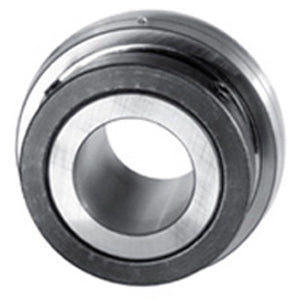

| title | UG343L |
| price | $ 789.28 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 11.5 |
| Bore | 2.688 Inch | 68.275 Millimeter |
| Other Features | Single Row | Heavy Duty | Single Collar | With Set Screw |
| Outside Diameter | 5.906 Inch | 150.012 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 245410 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.813 Inch | 96.85 Millimeter |
| Outer Race Width | 1.614 Inch | 40.996 Millimeter |
| Inner Race Profile | Wide Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Steel Clad Clearance |
