Specifications

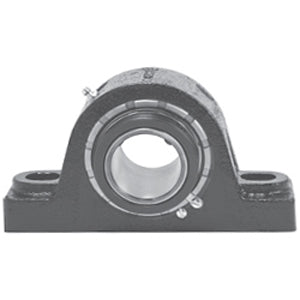

| title | AMA5315 |
| price | $ 3,290.28 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 59.5 |
| Other Features | Double Row | Double Collar | Two Open Auxiliary End Cap | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 503659 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 8.313 Inch | 211.15 Millimeter |
| Actual Bolt Center to Center | 10.9 Inch | 276.2Millimeter |
| Nominal Bolt Center to Center | 10.9 Inch | 276.9 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 4.125 Inch | 104.775 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 5315U |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 1 Piece Solid |
