Specifications

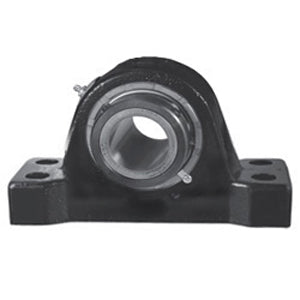

| title | AMP5515F |
| price | $ 10,550.38 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 255 |
| Other Features | Double Row | Double Collar | Two Open Auxiliary End Cap | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 503571 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 11.063 Inch | 281 Millimeter |
| Actual Bolt Center to Center | 20.5 Inch | 520.7Millimeter |
| Nominal Bolt Center to Center | 20.5 Inch | 520.7 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 7.063 Inch | 179.4 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 5515U |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1-1/8 Inch |
| Housing Configuration | 1 Piece Solid |
