FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications
| title | AMP9407F |
| price | $ 8,969.75 / each |

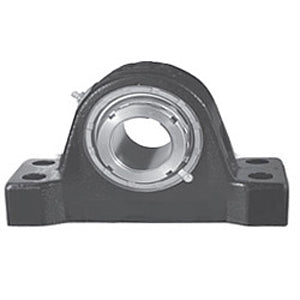

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 168 |
| Other Features | Double Row | Two Open Auxiliary End Cap |
| Relubricatable | Yes |
| Global Part Number GPN | 503557 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 10.125 Inch | 257.175 Millimeter |
| Actual Bolt Center to Center | 16 Inch | 406.4Millimeter |
| Nominal Bolt Center to Center | 16 Inch | 406.4 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 6.125 Inch | 155.575 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 9407U |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1-1/8 Inch |
| Housing Configuration | 1 Piece Solid |
