Specifications
| title | AMPS9307F |
| price | $ 4,765.75 / each |

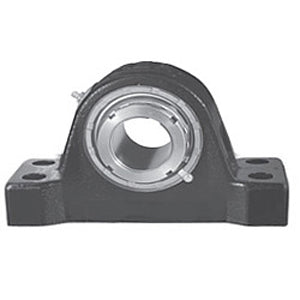

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 93 |
| Other Features | Double Row | Two Open Auxiliary End Cap |
| Relubricatable | Yes |
| Global Part Number GPN | 503614 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 8.563 Inch | 217.5 Millimeter |
| Actual Bolt Center to Center | 13.3 Inch | 337Millimeter |
| Nominal Bolt Center to Center | 13.3 Inch | 336.8 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 5 Inch | 127 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 9307U |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
