FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

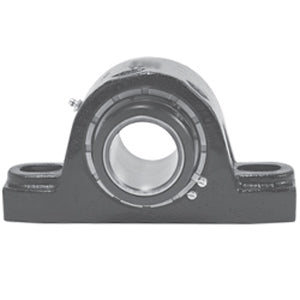

| title | BMEP2060MM |
| price | $ 2,067.21 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Metric |
| Brand | REXNORD |
| Weight / LBS | 18.2 |
| Other Features | Double Row | Single Collar | Two Auxiliary End Cap | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 503462 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.5 Inch | 88.9 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.8 Inch | 199.2 Millimeter |
| Bolt Spacing Minimum | 6.938 Inch | 176.225Millimeter |
| Base to Center Height | 2.756 Inch | 70 Millimeter |
| Bolt Spacing Maximum | 8.75 Inch | 222.25Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2060MMU |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
