Specifications
| title | BMPS9315YF |
| price | $ 6,828.62 / each |

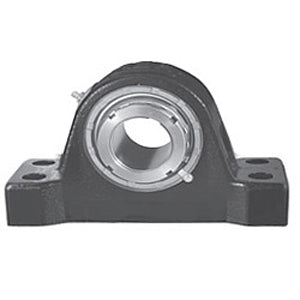

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 119 |
| Other Features | Double Row | Two Auxiliary End Cap | Redesigned Shaft Size |
| Relubricatable | Yes |
| Global Part Number GPN | 503398 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 5.406 Inch | 137.312 Millimeter |
| Actual Bolt Center to Center | 14.8 Inch | 375Millimeter |
| Nominal Bolt Center to Center | 14.8 Inch | 375 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 5.75 Inch | 146.05 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 9315YU |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 1 Piece Solid |
