FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

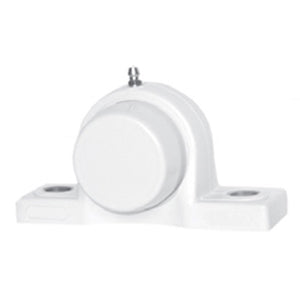

| title | BPPL4CEW |
| price | $ 62.12 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.21 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.46 |
| Other Features | Single Row | Spherical | White Housing | Closed End |
| Relubricatable | Yes |
| Global Part Number GPN | 527007 |
| Mounting Method | Set Screw |
| Length Thru Bore | 0.972 Inch | 24.7 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 3.8 Inch | 97 Millimeter |
| Bolt Spacing Minimum | 3.575 Inch | 90.8Millimeter |
| Base to Center Height | 1.311 Inch | 33.3 Millimeter |
| Bolt Spacing Maximum | 3.925 Inch | 99.7Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B4 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Thermoplastic |
| Mounting Bolts | 10 Millimeter |
| Housing Configuration | 1 Piece Solid |
