Specifications
| title | BPPL5-16MZ2CB |
| price | $ 84.08 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.345 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.12 |
| Other Features | Single Row | Spherical | Zinc Coated Insert | Black Housing | Open Cover |
| Relubricatable | Yes |
| Global Part Number GPN | 527001 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.063 Inch | 27 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.1 Inch | 105 Millimeter |
| Bolt Spacing Minimum | 3.949 Inch | 100.3Millimeter |
| Base to Center Height | 1.438 Inch | 36.525 Millimeter |
| Bolt Spacing Maximum | 4.301 Inch | 109.245Millimeter |

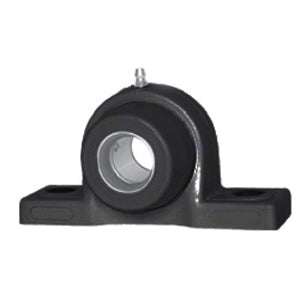

| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B5-16MZ2 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Thermoplastic |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
