Specifications
| title | C-SPW2220-307N1 |
| price | $ 1,991.77 / each |

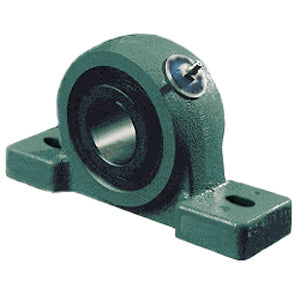

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 54 |
| Other Features | Double Row | Heavy Duty | Phosphate Coated Insert |
| Relubricatable | Yes |
| Global Part Number GPN | 500451 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 0 Inch | 0 Millimeter |
| Actual Bolt Center to Center | 12.6 Inch | 320Millimeter |
| Nominal Bolt Center to Center | 12.6 Inch | 321 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 4.409 Inch | 112 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | MX-W22220BLLKC3 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Double Taconite Service Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 24 Millimeter |
| Housing Configuration | 1 Piece Solid |
