Specifications
| title | CPB102ZM |
| price | $ 78.30 / each |

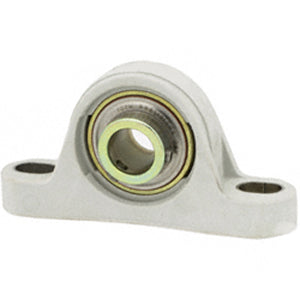

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Weight / kgm | 0.5 |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 1.1 |
| Other Features | Single Row | Normal Duty | Corrosion Resistant | Has Flinger | Zmarc Coated Insert | With Set Screw |
| Relubricatable | No |
| Global Part Number GPN | 515028 |
| Mounting Method | Set Screw |
| Length Thru Bore | 0 Inch | 0 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.7 Inch | 119 Millimeter |
| Bolt Spacing Minimum | 4.25 Inch | 107.95Millimeter |
| Base to Center Height | 1.688 Inch | 42.875 Millimeter |
| Bolt Spacing Maximum | 5.047 Inch | 128.194Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | RRZ1102BRR |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Contact |
| Housing Material | Cast Polymer |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
