Specifications

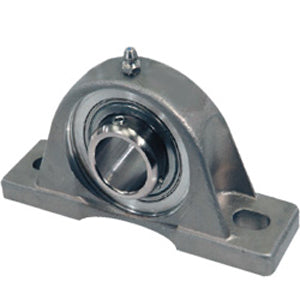

| title | CRPS-PN31 |
| price | $ 365.37 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 3.587 |
| Inch - Metric | Inch |
| Brand | SEALMASTER |
| Weight / LBS | 7.9 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 515790 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.031 Inch | 51.59 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
| Bolt Spacing Minimum | 6 Inch | 152.4Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 6.5 Inch | 165.1Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | PN-31 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | High Performance Seal |
| Housing Material | Stainless Steel |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
