FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

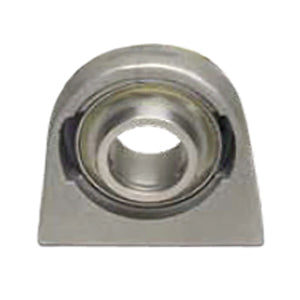

| title | CTB012SS |
| price | $ 222.81 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MRC BEARING |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 0.51 |
| Other Features | Single Row | Normal Duty | Corrosion Resistant | Has Flinger | Stainless Steel Insert | With Set Screw |
| Relubricatable | No |
| Global Part Number GPN | 514992 |
| Mounting Method | Set Screw |
| Length Thru Bore | 0 Inch | 0 Millimeter |
| Actual Bolt Center to Center | 2 Inch | 52Millimeter |
| Nominal Bolt Center to Center | 2 Inch | 52 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.313 Inch | 33.35 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | RRH1012BRR |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Contact |
| Housing Material | Cast Polymer |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
