FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

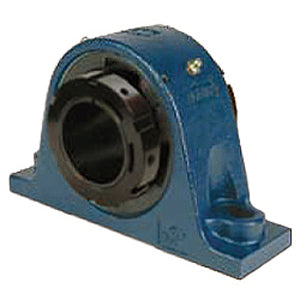

| title | DVP09K040ST |
| price | $ 292.55 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 10 |
| Other Features | Double Row | Heavy Duty |
| Relubricatable | Yes |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 1.98 Inch | 50.3 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.6 Inch | 142.5 Millimeter |
| Bolt Spacing Minimum | 4.689 Inch | 119.1Millimeter |
| Base to Center Height | 2.126 Inch | 54 Millimeter |
| Bolt Spacing Maximum | 6.5 Inch | 165.1Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22209 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Teflon Labyrinth |
| Housing Material | Cast Steel |
| Mounting Bolts | 12 Millimeter |
| Housing Configuration | 1 Piece Solid |
