Specifications

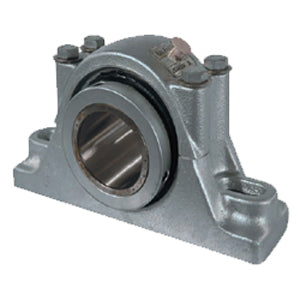

| title | EDPB 203-C2 |
| price | $ 840.82 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 21.8 |
| Other Features | Double Row | Heavy Duty | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 515753 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.75 Inch | 95.25 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8.5 Inch | 215.5 Millimeter |
| Bolt Spacing Minimum | 7.75 Inch | 196.85Millimeter |
| Base to Center Height | 2 Inch | 50.8 Millimeter |
| Bolt Spacing Maximum | 9.25 Inch | 234.95Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
