Specifications

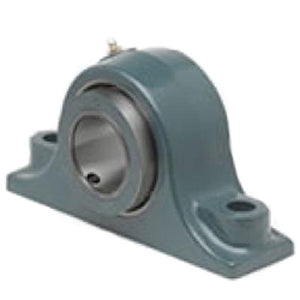

| title | EP2B-S2-215R |
| price | $ 645.68 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 10.51 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 23.14 |
| Other Features | Double Row | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 522739 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.59 Inch | 91.186 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 9.5 Inch | 241.3 Millimeter |
| Bolt Spacing Minimum | 9.31 Inch | 236.474Millimeter |
| Base to Center Height | 3.125 Inch | 79.38 Millimeter |
| Bolt Spacing Maximum | 9.69 Inch | 246.126Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-S2-215R |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
