Specifications

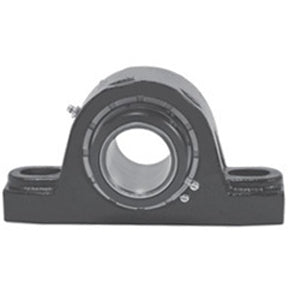

| title | EPB22635E7 |
| price | $ 771.38 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 15 |
| Other Features | Double Row | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 518076 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 3.16 Inch | 80.264 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.2 Inch | 182.9 Millimeter |
| Bolt Spacing Minimum | 6.563 Inch | 166.7Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 8 Inch | 203.2Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B22635E7L |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
