Specifications
| title | EPEB224B28E |
| price | $ 427.35 / each |

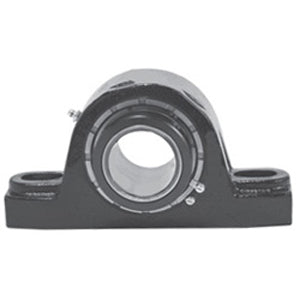

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 12 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 518063 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.125 Inch | 79.38 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.7 Inch | 170 Millimeter |
| Bolt Spacing Minimum | 6.063 Inch | 154Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 7.25 Inch | 184.15Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B224B28EL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Spring Loaded Lip |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
