Specifications

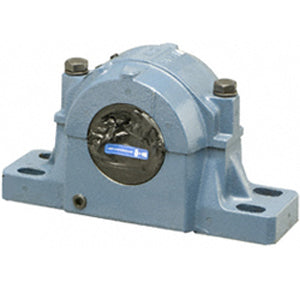

| title | FSAF 22220 |
| price | $ 1,325.00 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 59 |
| Other Features | Double Row | Heavy Duty |
| Relubricatable | Yes |
| Mounting Method | Shaft Mount |
| Length Thru Bore | 6.031 Inch | 153.187 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 12.4 Inch | 315 Millimeter |
| Bolt Spacing Minimum | 11.625 Inch | 295.275Millimeter |
| Base to Center Height | 4.5 Inch | 114.3 Millimeter |
| Bolt Spacing Maximum | 13.125 Inch | 333.375Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 22220 E |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
