Specifications

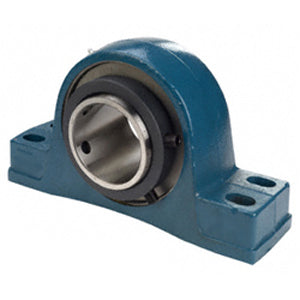

| title | FSYE 3.15/16 NH |
| price | $ 1,325.06 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 49.5 |
| Other Features | Double Row | Heavy Duty | Locating Bearing | Open End | With Grub Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 501540 |
| Mounting Method | Stepped Sleeve |
| Length Thru Bore | 3.39 Inch | 86.106 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 12.5 Inch | 317.5 Millimeter |
| Bolt Spacing Minimum | 12 Inch | 304.8Millimeter |
| Base to Center Height | 4.25 Inch | 107.95 Millimeter |
| Bolt Spacing Maximum | 13 Inch | 330.2Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 22220 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Trigard |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
