FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

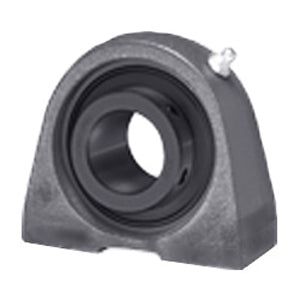

| title | HUCPA 210 32 |
| price | $ 99.88 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 5.9 |
| Other Features | Single Row | Black Oxide Coated Insert | High Temperature Range From -45 to 450 Degree F |
| Relubricatable | Yes |
| Global Part Number GPN | 519155 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.032 Inch | 51.613 Millimeter |
| Actual Bolt Center to Center | 4 Inch | 102Millimeter |
| Nominal Bolt Center to Center | 4 Inch | 101.6 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | HUC210-32 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | B Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
