Specifications

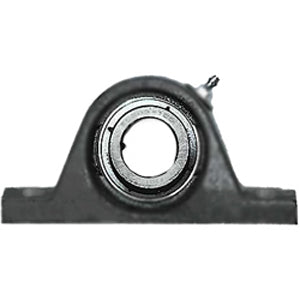

| title | JELPL-1.1/4 |
| price | $ 64.38 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 0.44 |
| Other Features | Single Row | Narrow Inner Race | Low Base | Has Trash Guard | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 514787 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.531 Inch | 38.9 Millimeter |
| Actual Bolt Center to Center | 5.1 Inch | 129Millimeter |
| Nominal Bolt Center to Center | 5 Inch | 127 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.813 Inch | 46.05 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | A-JEL207-104D1 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
