FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

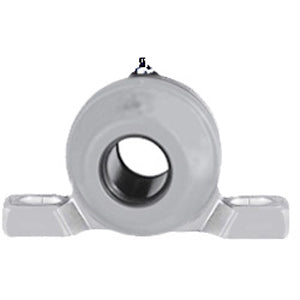

| title | KLPS212D40A |
| price | $ 197.29 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 1.5 |
| Other Features | Single Row | Intermediate Duty | White Housing | Open End | Black Oxide Coated Insert | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 517908 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.125 Inch | 28.58 Millimeter |
| Actual Bolt Center to Center | 3.8 Inch | 96Millimeter |
| Nominal Bolt Center to Center | 3.8 Inch | 97 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.313 Inch | 33.35 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | SG212EL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Thermoplastic |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
