Specifications

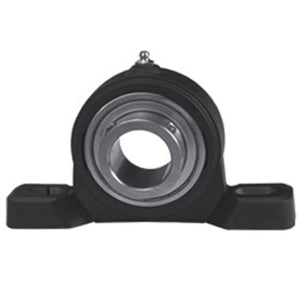

| title | KPSS2M40D |
| price | $ 216.71 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 2.205 |
| Other Features | Single Row | Intermediate Duty | Black Housing | Stainless Steel Insert | Open End | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 517884 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.688 Inch | 42.87 Millimeter |
| Actual Bolt Center to Center | 5.4 Inch | 136Millimeter |
| Nominal Bolt Center to Center | 5.4 Inch | 136 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2 Inch | 50.8 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Polymer |
| Mounting Bolts | 12 Millimeter |
| Housing Configuration | 1 Piece Solid |
