Specifications

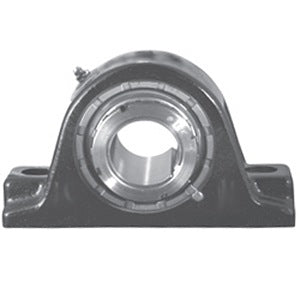

| title | MA2315 |
| price | $ 1,954.49 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 25.424 |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 56 |
| Other Features | Double Row | Normal Duty | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 502967 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5.188 Inch | 131.775 Millimeter |
| Actual Bolt Center to Center | 10.9 Inch | 276.2Millimeter |
| Nominal Bolt Center to Center | 11.3 Inch | 287 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 4.125 Inch | 104.775 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2315U |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 1 Piece Solid |
