Specifications
| title | MEP5500F |
| price | $ 4,661.33 / each |

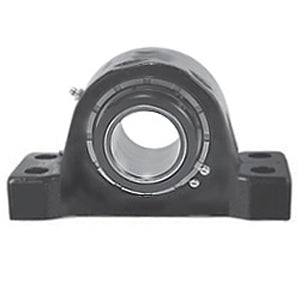

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 147 |
| Other Features | Double Row | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 502711 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 7.875 Inch | 200.03 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 15.5 Inch | 393.7 Millimeter |
| Bolt Spacing Minimum | 14.875 Inch | 377.83Millimeter |
| Base to Center Height | 5.5 Inch | 139.7 Millimeter |
| Bolt Spacing Maximum | 16.125 Inch | 409.58Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 5500U |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
