Specifications
| title | MFP-56C |
| price | $ 1,726.71 / each |

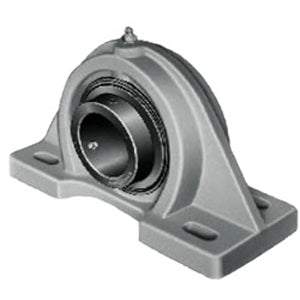

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 48.6 |
| Other Features | Single Row | Medium Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 7146 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.781 Inch | 96.037 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11.5 Inch | 292.1 Millimeter |
| Bolt Spacing Minimum | 10.75 Inch | 273.05Millimeter |
| Base to Center Height | 4 Inch | 101.6 Millimeter |
| Bolt Spacing Maximum | 12.25 Inch | 311.15Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 2-38C |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
