FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

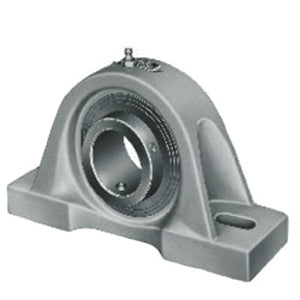

| title | MP-316 |
| price | $ 1,227.50 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Metric |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 44.1 |
| Other Features | Single Row | Medium Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 6209 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.375 Inch | 85.725 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11.1 Inch | 283 Millimeter |
| Bolt Spacing Minimum | 9.688 Inch | 246.075Millimeter |
| Base to Center Height | 3.937 Inch | 100 Millimeter |
| Bolt Spacing Maximum | 12.563 Inch | 319.1Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 5316 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
