Specifications
| title | MP-56 |
| price | $ 1,124.62 / each |

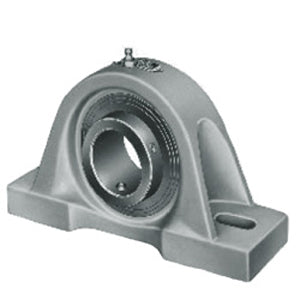

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 21.701 |
| Inch - Metric | Inch |
| Brand | SEALMASTER |
| Weight / LBS | 47.8 |
| Other Features | Single Row | Medium Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 6269 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.781 Inch | 96.037 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11.1 Inch | 283 Millimeter |
| Bolt Spacing Minimum | 9.625 Inch | 244.475Millimeter |
| Base to Center Height | 4 Inch | 101.6 Millimeter |
| Bolt Spacing Maximum | 12.625 Inch | 320.675Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2-38 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
