Specifications
| title | MP511166 |
| price | $ 638.39 / each |

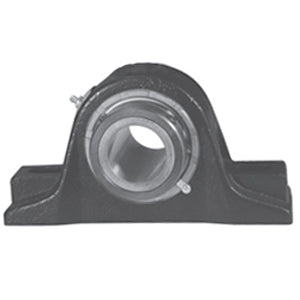

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 11.6 |
| Other Features | Double Row | Heavy Duty | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 502461 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.813 Inch | 96.84 Millimeter |
| Actual Bolt Center to Center | 6.5 Inch | 165Millimeter |
| Nominal Bolt Center to Center | 6.5 Inch | 165 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.313 Inch | 58.75 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 5111U |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
