FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

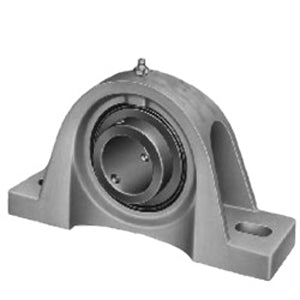

| title | MPD-63C |
| price | $ 2,775.55 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 73.2 |
| Other Features | Single Row | Medium Duty | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 515563 |
| Mounting Method | Set Screw |
| Length Thru Bore | 5.375 Inch | 136.525 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 13.3 Inch | 336.8 Millimeter |
| Bolt Spacing Minimum | 11.75 Inch | 298.45Millimeter |
| Base to Center Height | 5 Inch | 127 Millimeter |
| Bolt Spacing Maximum | 14.75 Inch | 374.65Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 3-315DC |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 1 Piece Solid |
