Specifications

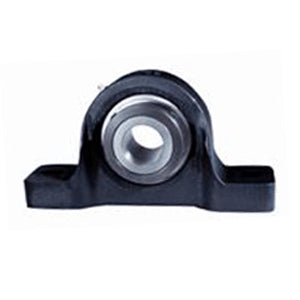

| title | MPDU243N |
| price | $ 591.47 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 26.5 |
| Other Features | Medium Duty | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 517835 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.625 Inch | 92.075 Millimeter |
| Actual Bolt Center to Center | 9 Inch | 229Millimeter |
| Nominal Bolt Center to Center | 9 Inch | 229 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 3.5 Inch | 88.9 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
