Specifications

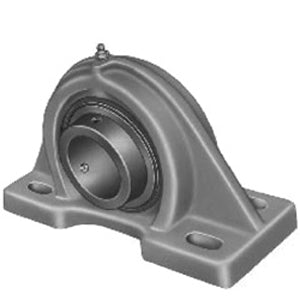

| title | MSFPD-35 |
| price | $ 590.07 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 20.1 |
| Other Features | Single Row | Medium Duty | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 7183 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.125 Inch | 79.38 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.5 Inch | 190 Millimeter |
| Bolt Spacing Minimum | 6.875 Inch | 174.625Millimeter |
| Base to Center Height | 3.125 Inch | 79.38 Millimeter |
| Bolt Spacing Maximum | 8.125 Inch | 206.375Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 3-23D |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
