Specifications
| title | MSFPD-63 |
| price | $ 2,558.23 / each |

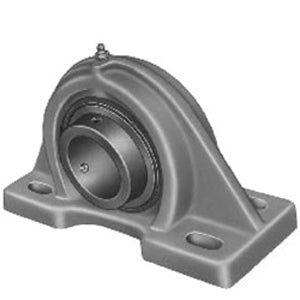

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 38.408 |
| Inch - Metric | Inch |
| Brand | SEALMASTER |
| Weight / LBS | 84.6 |
| Other Features | Single Row | Medium Duty | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 7206 |
| Mounting Method | Set Screw |
| Length Thru Bore | 5.375 Inch | 136.525 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 13.3 Inch | 336.8 Millimeter |
| Bolt Spacing Minimum | 12.438 Inch | 315.925Millimeter |
| Base to Center Height | 5.125 Inch | 130.175 Millimeter |
| Bolt Spacing Maximum | 14.063 Inch | 357.2Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 3-315D |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
