Specifications

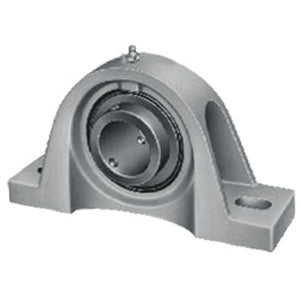

| title | MSPD-27 CXU |
| price | $ 397.67 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 9.5 |
| Other Features | Single Row | Medium Duty | Air Handling Duty | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 6347 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.5 Inch | 63.5 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.9 Inch | 175.3 Millimeter |
| Bolt Spacing Minimum | 6.438 Inch | 163.525Millimeter |
| Base to Center Height | 2.375 Inch | 60.325 Millimeter |
| Bolt Spacing Maximum | 7.438 Inch | 188.925Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 3-111D-CXU |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
