Specifications

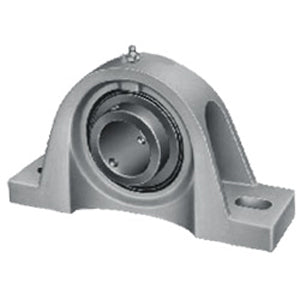

| title | MSPD-36C |
| price | $ 723.38 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 17 |
| Other Features | Single Row | Medium Duty | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 6363 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.125 Inch | 79.38 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8.6 Inch | 218.4 Millimeter |
| Bolt Spacing Minimum | 7.875 Inch | 200.025Millimeter |
| Base to Center Height | 3.125 Inch | 79.38 Millimeter |
| Bolt Spacing Maximum | 9.375 Inch | 238.125Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2-24DC |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
