Specifications

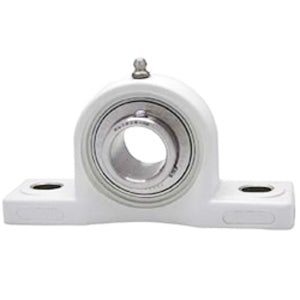

| title | MUCPPL205-16RFW |
| price | $ 180.13 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.35 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.76 |
| Other Features | Single Row | Spherical | Normal Duty | White Housing | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 526452 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.339 Inch | 34 Millimeter |
| Actual Bolt Center to Center | 4.1 Inch | 105Millimeter |
| Nominal Bolt Center to Center | 4.1 Inch | 105 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.438 Inch | 36.525 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | MUC205-16 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Contact |
| Housing Material | Thermoplastic |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
