Specifications

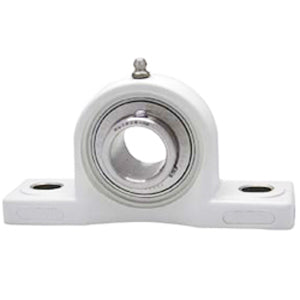

| title | MUCPPL206-18RFW |
| price | $ 220.92 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.545 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.21 |
| Other Features | Single Row | Spherical | Normal Duty | White Housing | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 526440 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
| Actual Bolt Center to Center | 4.7 Inch | 119Millimeter |
| Nominal Bolt Center to Center | 4.7 Inch | 119 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.688 Inch | 42.875 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | MUC206-18 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Contact |
| Housing Material | Thermoplastic |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
