Specifications

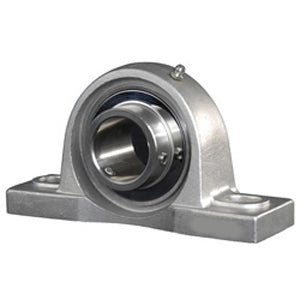

| title | MUCPPWS204-12RF |
| price | $ 121.05 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.18 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.4 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | No |
| Global Part Number GPN | 526347 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.22 Inch | 31 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 3 Inch | 76 Millimeter |
| Bolt Spacing Minimum | 2.875 Inch | 73.025Millimeter |
| Base to Center Height | 1 Inch | 25.4 Millimeter |
| Bolt Spacing Maximum | 3.125 Inch | 79.375Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | MUC204-12 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Contact |
| Housing Material | Stamped Stainless Steel |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
